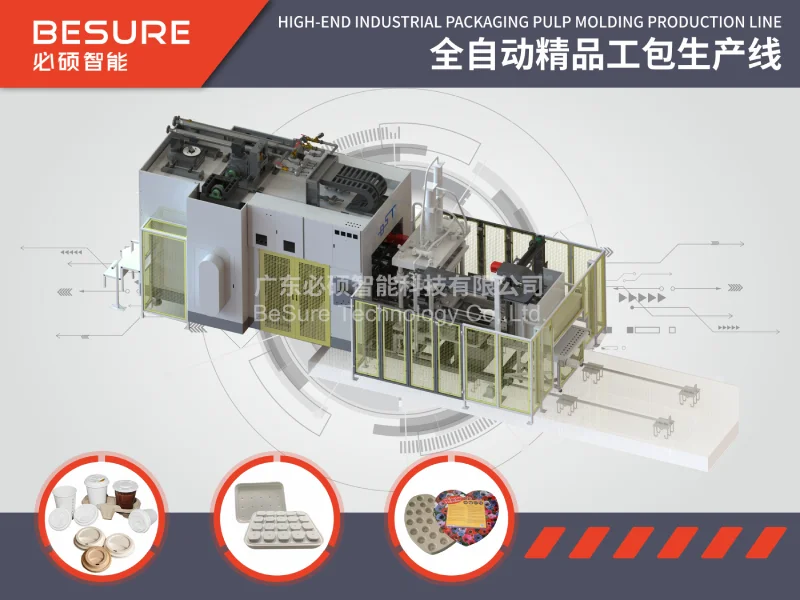

High-end Industrial Packaging Production Line
A production line for creating disposable pulp molded cup lids integrates several key components: a pulp processing unit, a primary machine, a vacuum mechanism, a high-pressure water system, and an air compression system. This assembly efficiently manufactures single-use lids for molded pulp cups.
BESURE High-End Industrial Packaging Production Line: Boost Your Brand
In a competitive market, packaging is key to showcasing brand value. BESURE’s high-end industrial packaging production line offers advanced technology and top-quality standards to meet your packaging needs. Our flexible, versatile lines cater to various industries—electronics, cosmetics, jewelry, and more—supporting a wide range of shapes, sizes, and materials.
Sustainability and Quality
We prioritize eco-friendly materials and processes, ensuring our packaging is recyclable and meets environmental standards. Enhance your brand image and drive sales with packaging that reflects quality and responsibility.
Comprehensive Support
BESURE provides full-service support, including custom solutions, technical assistance, and training for a smooth production process.
Model:TSMP-11075
- Fully automatic design, forming and hot pressing are automatically completed in one machine. Fully automatic high-quality integrated machine driven by servo motor + precision reducer
- Forming method: The slurry suction mold rotates 180°, parallel to the slurry surface, then descends to the inside of the slurry, sucks the slurry to form, then lifts to leave the slurry surface, rotates 180° to the horizontal plane, dehydrates, and then rises again, closes the mold with the transfer mold, and realizes product transfer through vacuum adsorption and blowing
- Dimensions: L5300×W3200×H3900mm
- Template size: 1100×750mm
- Maximum hot pressing pressure: 30T (servo)
- Motor power:
6.1 Forming motor: 7kW
6.2 Translation motor: 5kW
6.3 Hot pressing motor: 7kW - Heating installed power: 122.4kW (or 140,000 kcal)
- Total power: 141.4kW/38kW
- Product range that can be produced, height <130mm, thickness <1.2mm
- Molding efficiency: ≥35 seconds/mold (depending on the product)
| Models | Output Capacity | Floor | Staff | Electricity | Water |
|---|---|---|---|---|---|
| IP4000 | 4 Tons/day | 50*12 Height≥4M | 4-7 persons/shift | 100-150KW/Hour | 0.5-1M3/Hour |
| IP5000 | 5 Tons/day | 60*12 Height≥4M | 5-7 persons/shift | 150-190 KW/Hour | 0.6-1.5CBM/Hour |
| IP6000 | 6 Tons/day | 65*12 Height≥4.5M | 6-8 persons/shift | 160-210KW/Hour | 0.75-1.5CBM/Hour |
Advanced Automation
The entire production process is seamlessly automated, ensuring streamlined operations from start to finish.
Versatility in Product Design
Our equipment is adept at manufacturing complex shapes, including items with negative angles like cup lids, thanks to its precise alignment and cold extrusion capabilities.
Efficiency and Precision
Characterized by swift operation, exceptional accuracy, and superior control, the machinery is powered by servo motors for optimal performance.
About Besure: A Pioneer in Pulp Molding Innovation
- Besure: Innovating Pulp Molding Since 1997
- Pioneered molded pulp production in China, integrating European technology.
- Evolved into a comprehensive group for R&D, manufacturing, and sales of pulp molding solutions.
- A China-Europe joint venture, leading the industry with a global footprint.
- The first Chinese pulp molding equipment manufacturer to go public.
- Over 25 years of expertise, setting the standard for high-end pulp molding equipment.
- Supports a global customer base with a network of six service centers.
BeSure: Leader in Pulp Forming
BeSure: Pulp Molding Innovator
Located in Foshan, China, BeSure leads in advanced pulp molding equipment, with a 38,000 sq m facility and over 250 staff, including a strong R&D focus.
Expertise
Our team of 8 doctors and 19 masters in mechanical, electronic, and thermal engineering propels industry progress.
State-of-the-Art Facilities
Equipped with advanced CNC and machining tools, our workshops ensure precision in mold and machine production.
Innovation and Quality
Our sample workshop and testing systems ensure top-quality equipment. Our European R&D center drives automation and holds key patents.
Siemens Partnership
Since 2016, our collaboration with Siemens has advanced production line intelligence, paving the way for pulp molding innovations.
