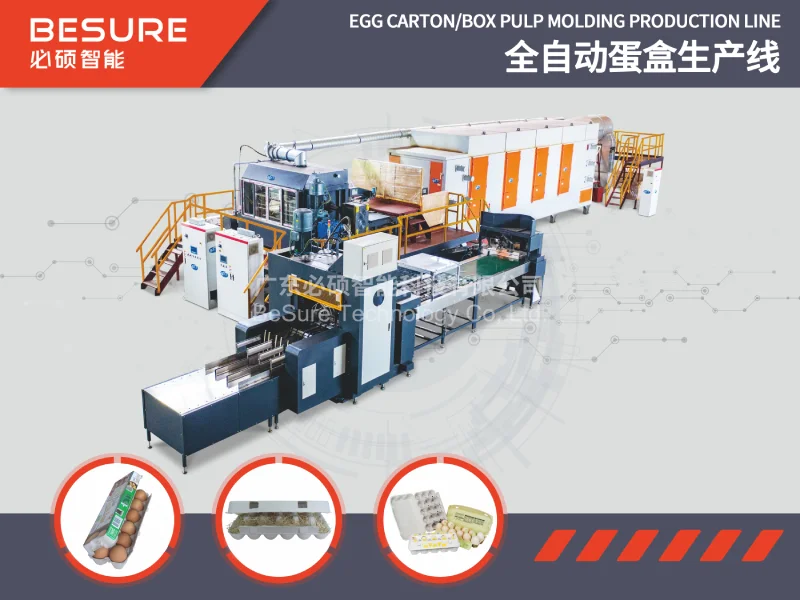

Full Automatic Molded Pulp egg carton production line
Invest in pulp molded egg carton production for efficiency, sustainability, and profitability. Streamlined processes minimize waste, reduce costs, and ensure high output, maximizing ROI.
- The pulp molded egg carton production line has the following features:
- Efficient production: Our production line can produce large quantities of egg boxes quickly and efficiently, which has the characteristics of improving production efficiency and reducing costs.
- Diversified production: Our production lines can flexibly produce egg cartons of various specifications, shapes and colors to meet the personalized needs of different customers.
- High-quality products: We use high-quality pulp materials and advanced production processes to ensure stable quality and durability of the egg cartons we produce.
- Energy saving and environmental protection: Our pulp molded egg carton production line adopts energy saving and environmental protection technology to reduce energy consumption and emissions.
- Customized services: We provide customized production services to provide customers with the highest quality services and products.
- With our pulp molded egg carton production line, you can get high-quality, environmentally friendly egg carton products. Welcome to contact us to provide the best packaging solutions for your products.
Model: EC5400
Product wet blank molding, preheating
Molding template: 4-sided drum structure
Template size: 1900×400mm 10/12 egg box: 6 pieces per output
Power: 11KW
Molding speed: 15 plates/minute
Tray specifications: 1900mm*330mm
Main components:
Feeding part (4000mm)
Front section 1500mm
Middle section 10500mm
Rear section 1500mm
Tail section 4300mm
Overall dimensions: 21800×3250×5200mm
Circulation fan: 1 unit, power: 55KW
Insulation layer thickness: 100mm
Drying energy: natural gas, LGP, diesel
Motor and reducer power: 18.5KW
Heating power: 32.4KW
Hot pressing pressure: 30T
Drive motor power: 0.55KW
1 out of 3 pieces, 10/12 egg boxes
| Models | Output Capacity | Floor | Staff | Electricity | Water |
|---|---|---|---|---|---|
| EC2700 | 2700pcs/hour | 45×24 Height≥4M | 4persons/shift | 150-180KW/Hour | 0.4-0.6Tons/Hour |
| EC5400 | 5400pcs/hour | 60*24 Height≥4M | 4persons/shift | 240-280KW/Hour | 1.6-1.8Tons/Hour |
| EC9600 | 9600pcs/hour | 70*24 Height≥4M | 6persons/shift | 360-420KW/Hour | 2-3Tons/Hour |
Advanced Automation
The entire production process is seamlessly automated, ensuring streamlined operations from start to finish.
Versatility in Product Design
Our equipment is adept at manufacturing complex shapes, including items with negative angles like cup lids, thanks to its precise alignment and cold extrusion capabilities.
Efficiency and Precision
Characterized by swift operation, exceptional accuracy, and superior control, the machinery is powered by servo motors for optimal performance.
About Besure: A Pioneer in Pulp Molding Innovation
- Besure: Innovating Pulp Molding Since 1997
- Pioneered molded pulp production in China, integrating European technology.
- Evolved into a comprehensive group for R&D, manufacturing, and sales of pulp molding solutions.
- A China-Europe joint venture, leading the industry with a global footprint.
- The first Chinese pulp molding equipment manufacturer to go public.
- Over 25 years of expertise, setting the standard for high-end pulp molding equipment.
- Supports a global customer base with a network of six service centers.
BeSure: Leader in Pulp Forming
BeSure: Pulp Molding Innovator

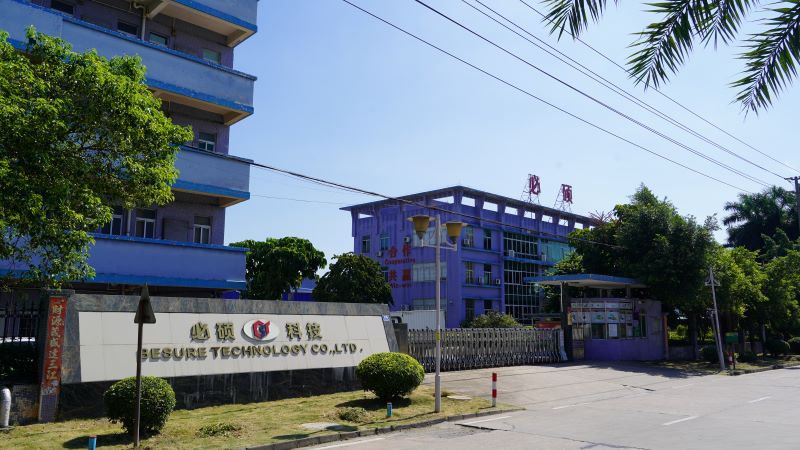

Located in Foshan, China, BeSure leads in advanced pulp molding equipment, with a 38,000 sq m facility and over 250 staff, including a strong R&D focus.
Expertise
Our team of 8 doctors and 19 masters in mechanical, electronic, and thermal engineering propels industry progress.
State-of-the-Art Facilities
Equipped with advanced CNC and machining tools, our workshops ensure precision in mold and machine production.
Innovation and Quality
Our sample workshop and testing systems ensure top-quality equipment. Our European R&D center drives automation and holds key patents.
Siemens Partnership
Since 2016, our collaboration with Siemens has advanced production line intelligence, paving the way for pulp molding innovations.
